Clamping Force: | |
---|---|
Suitable Material: | |
Die Head: | |
Station: | |
Screw: | |
Center distance: | |
Max product size: | |
Availability: | |
Quantity: | |
DSB65II
DAWSON
84773010
In the fast - paced world of beverage packaging, efficiency, precision, and versatility are key to staying ahead of the competition. Our High Speed Milk Juice Bottle Making Extrusion Blow Molding Machine is engineered to meet these demands and more, offering a comprehensive solution for manufacturers looking to produce high - quality plastic bottles, jars, and small containers with ease.
Unmatched Versatility in Production
Our extrusion blow molding machine stands out for its remarkable versatility, making it the ideal choice for a wide range of packaging needs. With the ability to produce items ranging in size from a compact 50ml to a generous 500ml, this machine caters to diverse product requirements. Whether you're bottling concentrated flavor essences in small 50ml containers, packaging single - serve milk or juice portions in 200ml bottles, or crafting larger 500ml jars for bulk products, our machine has you covered.
This wide size range is achieved through a combination of intelligent design and adjustable components. The machine's mold system can be easily customized and replaced, allowing for seamless transitions between different bottle and jar sizes. This flexibility not only enables manufacturers to diversify their product lines but also minimizes production downtime, ensuring a continuous flow of output. Moreover, the machine is suitable for creating various shapes, from classic cylindrical bottles to more intricate, uniquely - shaped containers, providing endless possibilities for brand differentiation in the market.
User - Friendly Operation with Bilingual Support
One of the most notable features of our High Speed Milk Juice Bottle Making Extrusion Blow Molding Machine is its user - friendly operation panel. Equipped with a bilingual interface, it caters to a global audience, eliminating language barriers and facilitating smooth operation. Whether your operators are native English speakers or more comfortable with another language, the intuitive display and clear instructions ensure that they can quickly master the machine's functions.
The bilingual operation panel simplifies every aspect of the production process. From setting up production parameters such as temperature, pressure, and cycle time to monitoring the machine's performance in real - time, operators can easily navigate through the interface. This ease of use not only reduces the learning curve for new employees but also enhances overall productivity, as experienced operators can work more efficiently without the distraction of complex language - related issues.
Advanced Automation for High - Speed Production
Our machine is a paragon of automation, integrating components from world - famous brands to deliver unparalleled performance. The automatic configuration ensures that the machine can operate at high speeds while maintaining precision and consistency. The advanced control system, sourced from leading - edge technology providers, coordinates the various functions of the machine, from the extrusion of the plastic parison to the blowing and cooling stages.
This high - level automation significantly increases production efficiency. The machine can complete a large number of production cycles in a short time, reducing production lead times and enabling manufacturers to meet tight deadlines. For example, in a high - volume production environment, the machine can produce hundreds of bottles per hour, far outpacing traditional manual or semi - automatic systems. Additionally, the automated features minimize human error, ensuring that each bottle or jar meets the strictest quality standards.
Quality Assurance for Superior Products
We understand that in the beverage packaging industry, product quality is non - negotiable. That's why our High Speed Milk Juice Bottle Making Extrusion Blow Molding Machine is designed with quality assurance at its core. The use of high - quality materials and components, combined with precise manufacturing processes, guarantees the production of durable, leak - proof containers.
The machine's extrusion system heats and melts the plastic raw materials evenly, ensuring a consistent flow and distribution. This results in containers with uniform wall thickness, which is crucial for the structural integrity and aesthetic appeal of the final product. During the blowing stage, the controlled injection of compressed air shapes the parison into the desired form with exceptional accuracy. The subsequent cooling process is also carefully calibrated to solidify the plastic quickly and evenly, preventing warping or deformation.
Furthermore, the machine is equipped with quality control sensors that monitor various aspects of the production process in real - time. If any deviation from the set parameters is detected, the machine can automatically adjust or stop production to prevent the creation of defective products. This proactive approach to quality control ensures that every bottle or jar that leaves the production line is of the highest quality, ready to protect and present your beverages in the best possible way.
After - Sales Support and Service
Our commitment to our customers doesn't end with the sale of the machine. We offer comprehensive after - sales support and service to ensure that your investment continues to deliver value for years to come. Our team of experienced technicians is available to provide installation, training, and ongoing maintenance services.
During the installation process, our experts will ensure that the machine is set up correctly and integrated seamlessly into your production line. They will also provide in - depth training to your operators, covering everything from basic operation to advanced troubleshooting. In the event of any technical issues, our responsive support team is just a phone call away. We offer prompt on - site repairs and remote assistance, minimizing downtime and keeping your production running smoothly.
Basic parameters | Suitable material | PE.PP | ||
Max volume | 500ml(Ten head) | |||
Output capacity | Depends on product | |||
Size | 4.28×4.77×2.67 (M) | |||
Weight | 12T | |||
system | Specification | Parameters | Note | |
Summarize | High efficient low power consumption plasticizing system, transducer control,self-protect function when started at low temperature | |||
Reducer | Material of Gear box body: HT200 Material of gear: ZG35CrMo Material of bearing: 42CrMo Heat treatment of Gear: Quenching | Brand:Haimao (Jiangsu) | ||
Screw | ∮90mm,L/D ratio 25/1, Material: 38CrMoALA Nitriding heat-treatment Cooling by cooling Fan | Cooling system available | ||
Plasticizing | 130Kg/H | HDPE | ||
Heating Zone | 3 | Automatic heating | ||
Heating power | 9KW/H | |||
Extrusion Motor | Three phase asynchronous motor (380V,50HZ) 37kw | |||
Cooling Fan | 3 | Automatic cooling | ||

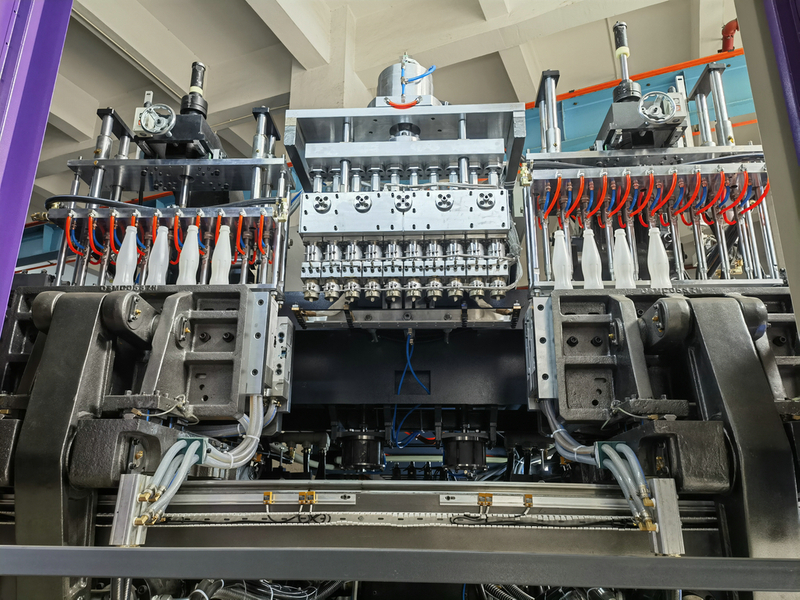

Die head system | Summarize | High-grade alloy steel, center feeding Avaible to change to double die head or thriple die heads | ||
Die head number | Ten head | |||
Center distance of die heads | 70mm | |||
Die head | Material of the die Head:38CrMoAlA+40Cr+45# Steel Die head corn mirror degree | We provide complete set die for each sample free | ||
Heating | 21 Stainless steel heating cycle With Plug type heater High quality thermocouple for temperature checking | Plug type heater more easy and convinient for changing die heads | ||
Heating power | 7KW | |||
Clamping system | Automatic Lubricant system for clamping system | |||
Clamping force | 110KN | |||
Clamping stroke | 250-430mm | |||
Mould moving stoke | 750mm | |||
Max mould size | 720X210X340mm(LXWXH) | |||
Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | SIEMENS PLC System + TOUCH SCREEN | |
Operate interface | Touch screen, automatic self-diagnose alarm system | |||
Temperature control | Automatic temperature control module | SIEMENS OR MITSUBISHI MODULE | ||
Electrical parts | Schneider electricals & Omron relay | |||
Electric protection | Ampere overload, electric short circuit self-protection function | |||
Parison controller | Shenzhen FEITIANRUI 100 points parison controller + stainless oil tank + oil pipes & fittings | |||
Inverter | HUICHUAN (SHENZHEN) 380V50HZ | |||
Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | ||
Oil pump motor | Three phase asynchronous motor (380V、50HZ) 14.5kw | |||
Oil pump | Imported double pump | |||
Valves | JAPAN YUKEN Hydraulic valves | |||
Precision control More safe and easy to operate and maintenance Also YUKEN series avoid any leakage problem both inner or outer, which makes the all operation reliable and safe. | ||||
O-ring | High quality O-ring | We provide spare parts for each sealing | ||
Oil pipes | Double layer over-pressure resistant | |||
System pressure | LP 120 bar / HP 140 bar Threads of hydraulic block use of screw joint GE(ISO 1179) | |||
Cooling system | Separate water cooling cycle, oil cooler cooling system High quality Oil cooler | |||
Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | ||
Air pressure | Min 0.8Mpa | |||
Air displacement | 1~1.2M3/min | |||
Electromagnetic valve | AIRTAC | |||
Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | ||
Cooling medium | Water | |||
Water flow | 120L/min | |||
Water pressure | 0.3-0.6MPa | |||
Overall | Total power | 74.5KW | ||
Average power | 30-33KW |
