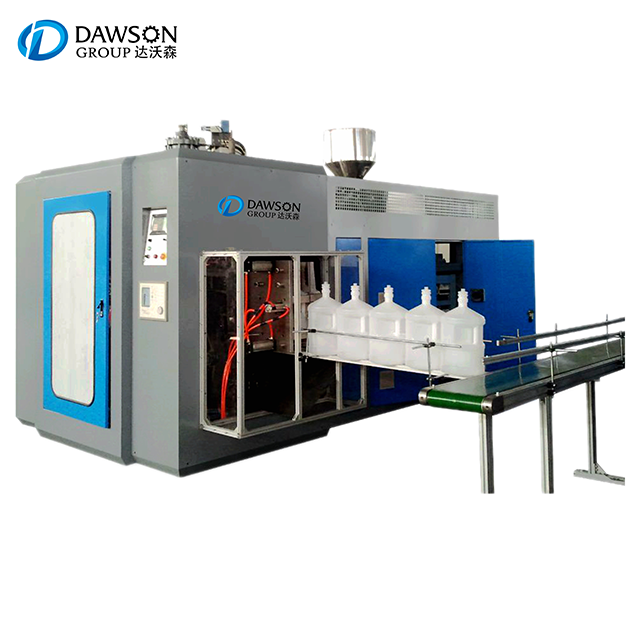

4 Gallon Bottle Extrusion Blow Molding Machine DSB90- 4 gallon
suitable for making plastic bottle, blowing jars, blow molding small containers, jerrycans from 5L to 20L,
The whole blow molding machine is equipped with the bilingual operation panel
and automatic configuration from world-famous brands to realize the advantages of simple operation
and high automation.
Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | |
Max volume | 20L | ||
Output capacity | 200~230 pcs/h | ||
Size | 4.6×3×2.4(M) | ||
Weight | 8.2T | ||
system | Specification | Parameters | Note |
Plasticizion system | Summarize | High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature | |
Reducer | Hard finishing,High intension,Low noise reducer | ||
Screw | ∮90mm,L/D ratio 25, 38CrMoALA | Cooling system available | |
Plasticization | 130Kg/H | HDPE | |
Heating Zone | 4 Aluminum Heater | Automatic heating | |
Heating power | 8KW/H | ||
Extrusion Motor | Three phase asynchronous motor (380V,50HZ) | ||
Cooling Fan | 4zone | Automatic cooling | |
Extrusion system | Summarize | High-grade alloy steel, center feeding | |
Die head number | 1 | ||
Center distance of die heads | / | ||
Max die mouth | ∮180mm | ||
Heating zone | 4 Stainless steel heating cycle | ||
Heating power | 5~7KW | ||
Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | |
Clamping force | 108KN | ||
Template distance | 240~660mm | ||
Max mould size | 530X550mm | ||
Mould material | High grade 50# steel | ||
Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | Japanese Mitsubishi PLC system |
Operate interface | Touch screen, automatic self-diagnose alarm system | ||
Temperature control | Automatic temperature control module | ||
Movement control | Japanese Mitsubishi, Chinese/English Version | ||
Electric protection | Ampere overload, electric short circuit self-protection function | ||
Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
Oil pump motor | Three phase asynchronous motor 11kw (380V/220V,50/60HZ) | ||
Oil pump | Imported double pump | ||
Valves | Imported oil pump valves and connections | ||
Oil pipes | Double layer overpressure resistant | ||
System pressure | 60Kg/cm² | ||
Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
Air pressure | 0.6Mpa | ||
Air displacement | 0.9M3/min | ||
Electromagnetic valve | Taiwan AIRTAC | ||
Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
Cooling medium | Water | ||
Water flow | 90L/min | ||
Water pressure | 0.3-0.6MP | ||
